About EM_TF Products

The EMTF data product contains magnetotelluric (MT) transfer functions (TFs), which define the frequency dependent linear relationship between components of electromagnetic (EM) field variations measured at a single site. Two sorts of TF are provided for most sites: 2x2 impedance tensors, and vertical field TFs, which respectively relate horizontal electric and vertical magnetic components (the outputs in the TF relationship) to the horizontal magnetic field vectors (the corresponding inputs).

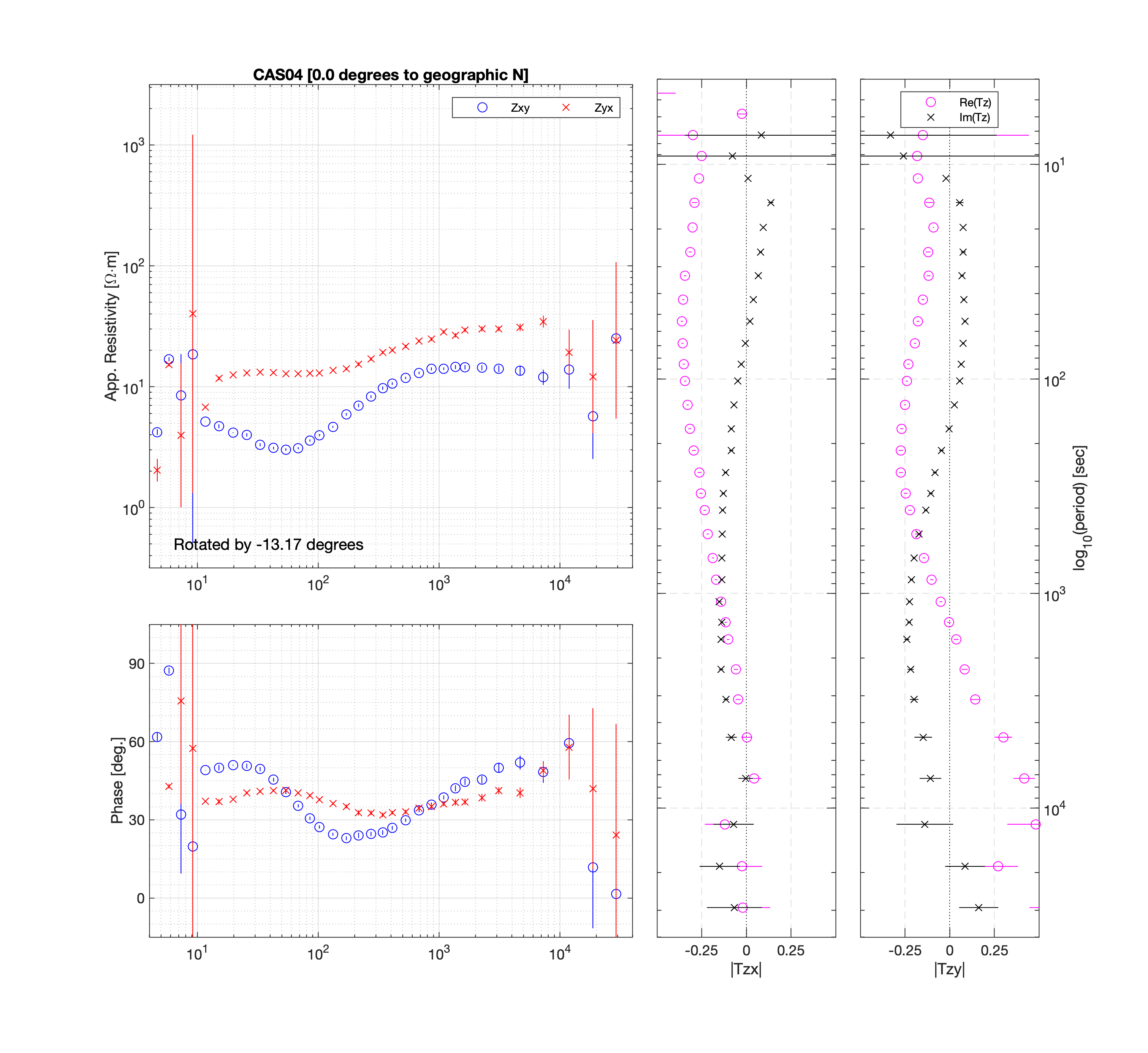

Note that for some sites only impedances are provided. All of the TFs, which can be justified if external source fields are quasi-uniform (varying over length scales that are long compared to the skin depth), provide input data for subsequent MT inversion and interpretation. They are estimated from the raw EM time series by (a) Fourier transforming data in a series of short overlapping time windows, and (b) applying robust regression methods to the resulting sequence of Fourier coefficients. For remote reference estimates data from a second site are used for noise cancellation, and to reduce bias due to noise in the predicting magnetic channels. Apparent resistivities and phases, which can be computed from the off-diagonal components of the impedance tensors, are frequently used in 2D interpretations. The EMTF data product includes estimates of the TFs for a range of periods (which may vary, depending on instrumentation and deployment time), as well as estimation error covariances.

Citing EM_TF Products

When citing this particular Magnetotelluric Transfer Function, please cite based on the "Citation Info" panel of this page. To cite the Magnetotelluric Transfer Function database at IRIS, please use the instructions at:

http://ds.iris.edu/ds/products/emtf/#citation


EM TF Help

The page displays information for individual Electromagnetic Transfer Functions.

The Transfer Function details are displayed in panels by default and optionally the XML may be viewed in the browser.
Magnetotelluric Transfer Functions icon
Identification
Sub Type: MT_TF
Description: Magnetotelluric Transfer Functions
Product ID: USMTArray.CAS04.2020
Tags: impedance,tipper


Citation Info
Survey Reference: Schultz, A., Pellerin, L., Bedrosian, P., Kelbert, A., Crosbie, J. (2020-2023). "USMTArray South Magnetotelluric Transfer Functions". doi:10.17611/DP/EMTF/USMTARRAY/SOUTH. Retrieved from the IRIS database on Apr 19, 2026
Specific Site Reference: Schultz, A., Pellerin, L., Bedrosian, P., Kelbert, A., Crosbie, J. (2020-2023). "USMTArray South Magnetotelluric Transfer Functions: CAS04". doi:10.17611/DP/18633652. Retrieved from the IRIS database on Apr 19, 2026
Acknowledgements: The USMTArray-CONUS South campaign was carried out through a cooperative agreement between the U.S. Geological Survey (USGS) and Oregon State University (OSU). A subset of 40 stations in the SW US were funded through NASA grant 80NSSC19K0232. Land permitting, data acquisition, quality control and field processing were carried out by Green Geophysics with project management and instrument/engineering support from OSU and Chaytus Engineering, respectively. Program oversight, definitive data processing and data archiving were provided by the USGS Geomagnetism Program and the Geology, Geophysics and Geochemistry Science Centers. We thank the U.S. Forest Service, the Bureau of Land Management, the National Park Service, the Department of Defense, numerous state land offices and the many private landowners who permitted land access to acquire the USMTArray data.
Selected Publications:
Release Status: Unrestricted Release
Conditions of Use: All data and metadata for this survey are available free of charge and may be copied freely, duplicated and further distributed provided that this data set is cited as the reference, and that the author(s) contributions are acknowledged as detailed in the Acknowledgements. Any papers cited in this file are only for reference. There is no requirement to cite these papers when the data are used. Whenever possible, we ask that the author(s) are notified prior to any publication that makes use of these data. While the author(s) strive to provide data and metadata of best possible quality, neither the author(s) of this data set, nor IRIS make any claims, promises, or guarantees about the accuracy, completeness, or adequacy of this information, and expressly disclaim liability for errors and omissions in the contents of this file. Guidelines about the quality or limitations of the data and metadata, as obtained from the author(s), are included for informational purposes only.
Site Info
Project: USMTArray
Survey: CONUS South
Year Collected: 2020
ID: CAS04
Name: Corral Hollow, CA, USA
Elevation: 329.387
Latitude: 37.63335
Longitude: -121.46838
Declination: 13.175
Declination Epoch: 2020.0
Orientation: orthogonal
Angle To GG North: 0.000
Release Status: Unrestricted Release
Acquired By: National Geoelectromagnetic Facility
Data Quality Rating: 4
Data Quality Comments: good TF from 10 to 10000 secs
Runlist: CAS04a CAS04b CAS04c CAS04d
Start Date: 2020-06-02 18:41:43
End Date: 2020-07-13 21:46:12
