The Searchable Product Depository (SPUD) is the IRIS DMC's primary data product management system. Complementing the DMC's SEED and assembled data archives, which contain time series recordings, the SPUD system primarily contains derivative data products of other types (images, movies, etc.) created either at the DMC or by members of the community.

For users SPUD is the query and access point for these products. The web interfaces allow users to search for products using customized queries across product and event details. Users can search across all product types at once or within specific product types. SPUD also has web service interfaces for programmatic discovery and access to the data products.

If any products from SPUD are used in your research please be sure to cite the identified author of the product and the IRIS DMS [Citation Information].

About Surface-Wave Radiation Patterns Products

The Surface-Wave Radiation Pattern product shows the patterns of seismic energy radiation by azimuth around the epicenter for Rayleigh and Love waves. The spectral amplitudes for Green’s functions obtained for elementary moment tensors observed at virtual stations are obtained from Mineos, an open-source software that computes synthetic seismograms in a spherically symmetric non-rotating Earth by summing normal modes. By convolving the spectral amplitudes with the components of the moment tensor as given by the Global CMT Project, the radiation pattern for different source mechanisms is obtained.

For more information on surface-wave radiation patterns visit the product page.


This product is automatically generated without human review.

Citing Surface-Wave Radiation Patterns Products

If you use Surface-Wave Radiation Patterns in publications, please cite according to the instructions at:

http://ds.iris.edu/ds/products/surface-wave-radiation-patterns/#citation

When citing this Surface-Wave Radiation Patterns page please use the Digital Object Identifier (DOI):

doi:10.17611/DP/16722367

Surface-Wave Radiation Patterns Help

This page shows the surface-wave radiation patterns for the selected event.

Surface-Wave Radiation Patterns for MW 6.9 SOUTHEAST OF LOYALTY ISLANDS icon
Event
Date-Time (UTC): 2018-08-29 03:51:56
Location: SOUTHEAST OF LOYALTY ISLANDS
Latitude, Longitude: -22.066 °, 170.050 °
Magnitude: 7.1 mww (us)
Depth: 26.68 km
Author: at,us,pt
Catalog, Contributor: NEIC PDE, us
Related Products:
Product Trigger Origin
Date-Time (UTC): 2018-08-29 03:51:56
Location: SOUTHEAST OF LOYALTY ISLANDS
Latitude, Longitude: -22.300 °, 169.850 °
Magnitude: 6.9 MW (Global CMT Project)
Depth: 16.43 km
Author: Global CMT Project
Catalog, Contributor: GCMT, GCMT
Interactive SWRP: C201808290351A
Principal Axes (Length Exponent: 26, Units: dyne-cm)
NameAzimuth (°)Plunge (°)Length
T38722.892
N1352-0.108
P22618-2.784
Focal Mechanism

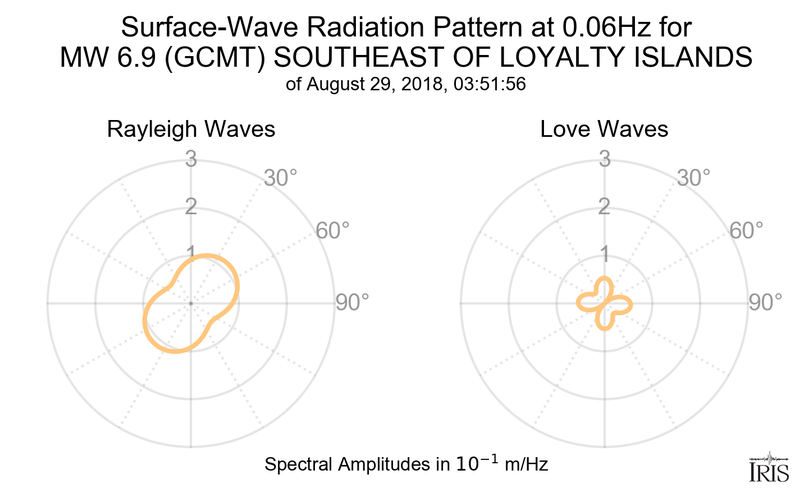

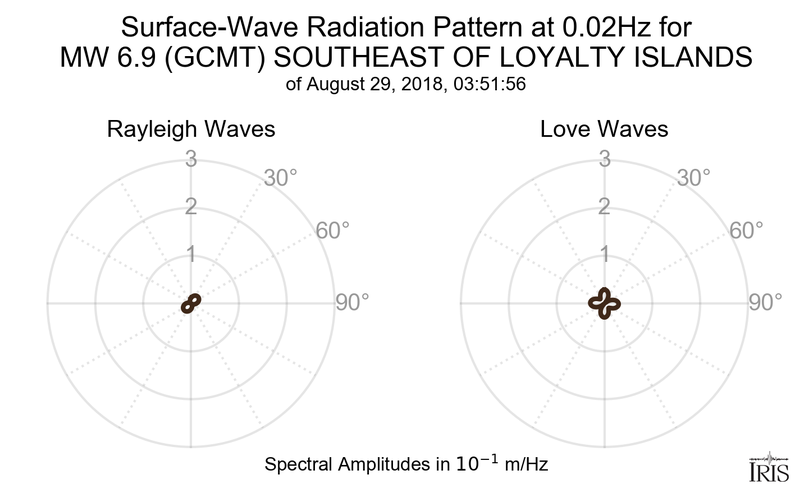

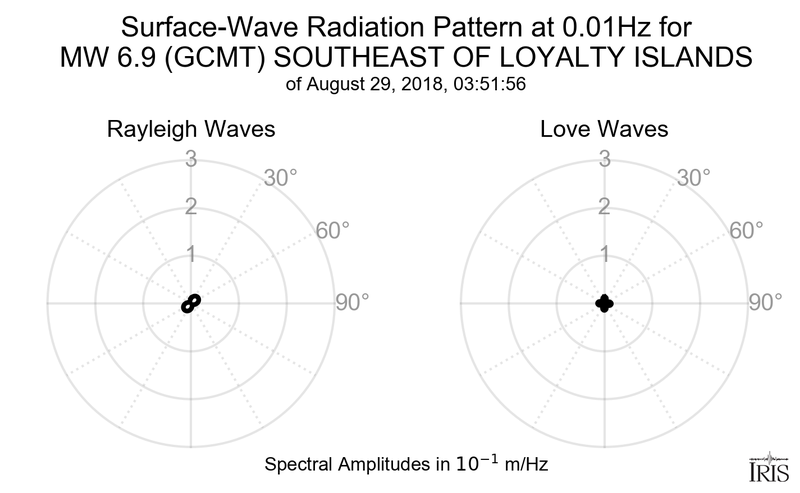

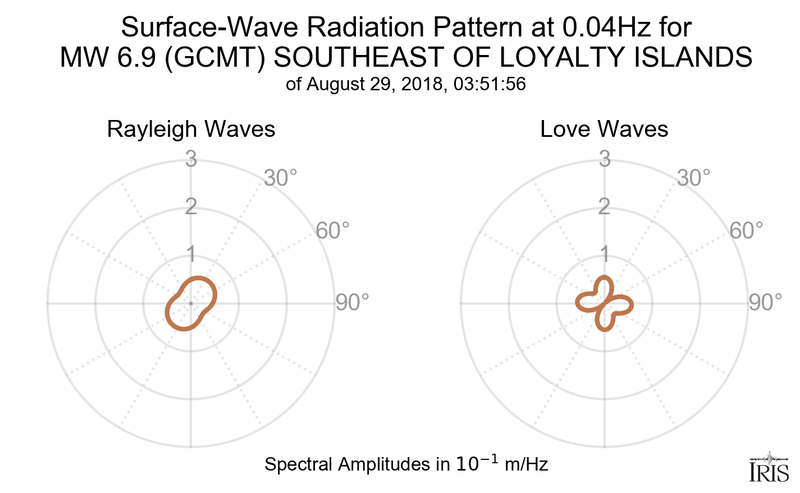

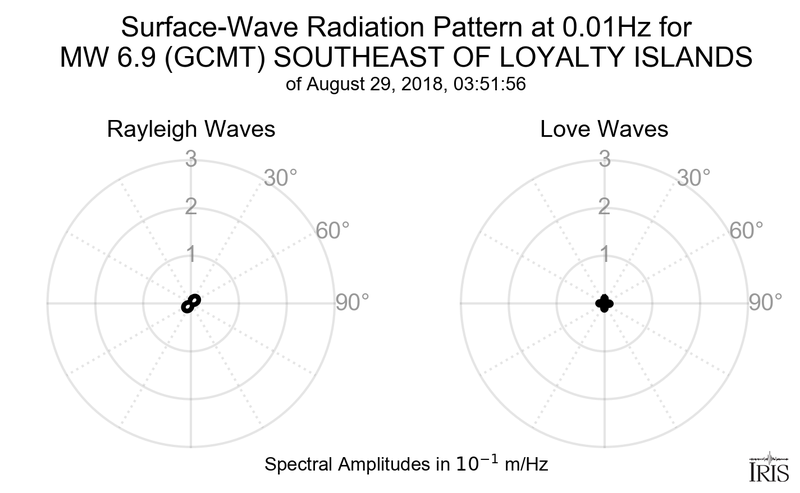

Surface-Wave Radiation Patterns at individual selected Frequencies

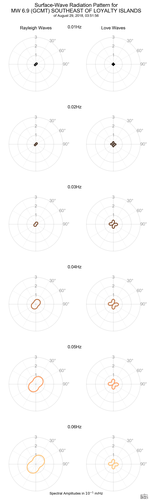

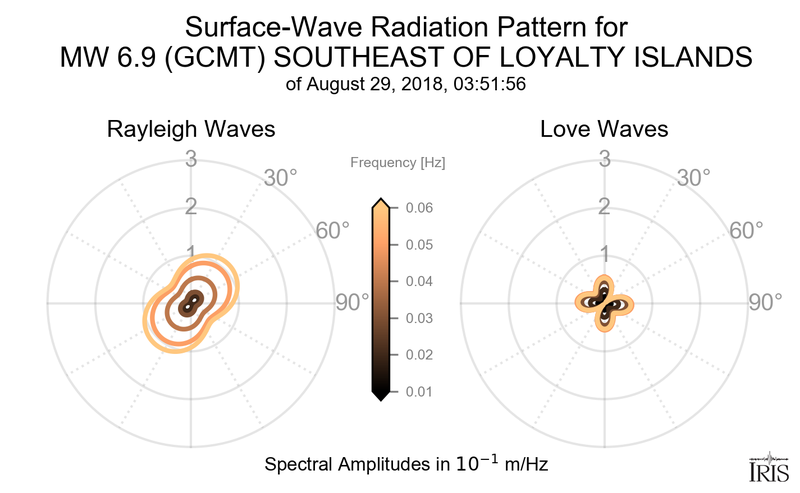

Surface-Wave Radiation Patterns at all selected Frequencies


Product Download
Attachments
FilenameDescriptionFile Type
C201808290351A.zipZip File of all Figuresapplication/zip
C201808290351A.txtText File of Amplitudes and Phasestext/plain
