Earth Model Help

The page displays information for individual Earth Models.

The model information is summarized at the top including links to further information.
3D S-wave tomography Earth model for the Cascadia Subduction Zone (Inactive) icon
Model Summary
Name:  PNW10-S
Title:  3D S-wave tomography Earth model for the Cascadia Subduction Zone
Type: 3D Tomography
Sub Type:  S velocity perturbation (%)
Year 2010
Author(s): Robert W. Porritt
Department of Earth and Planetary Science
University of California, Berkeley
California, USA

Richard M. Allen
Department of Earth and Planetary Science
University of California, Berkeley
California, USA

Devin C. Boyarko
Department of Geology
Miami University
Ohio, USA

Michael R. Brudzinski
Department of Geology
Miami University
Ohio, USA
Reference(s): Porritt, R.W., R.M. Allen, D.C. Boyarko , and M.R. Brudzinski. 2011. "Investigation of Cascadia segmentation with ambient noise tomography." Earth and Planetary Science Letters, 309(1-2), 67-76, ISSN 0012-821X, DOI: 10.1016/j.epsl.2011.06.026.
DOI: doi:10.17611/DP/9894887
Depth Coverage: 0.0 - 100.0 km
Areal Coverage: Latitude: 38.2 to 49.0 Longitude: -124.2 to -119.0
Model Description S-velocity model of the Cascadia Subduction Zone using Ambient Seismic Noise Tomography. This model focuses on the US Pacific Northwest to address a series of questions relating to variations in arc volcanism, seismicity, tremor activity, and the relation to subduction complex structure.
Data Set Description [ Porritt et al. (2011) ] While our dataset focuses on two Flexible Array Experiment (FACES and Mendocino Broadband) more than 1200 stations where used from the USArray transportable array, regional seismic networks, and temporary seismic deployments. Phase velocities measured from inter-station paths with a Frequency-Time Analysis procedure to prepare period dependent maps.
Web Page seismo.berkeley.edu/~rallen/research/dna/pnw10
EMC Page ds.iris.edu/ds/products/emc-pnw10-s
Model Data
DescriptionSizeModel
gzip tar of the above model in its original format. 965.5 KB
the netCDF binaries for the above model (S velocity perturbations). 928.2 KB
the netCDF binaries for the above model (S velocity in km/s). 928.2 KB
Model URLs
URLDescription
http://seismo.berkeley.edu/~rallen/research/dna/pnw10/downloadoriginal model files from the model download page

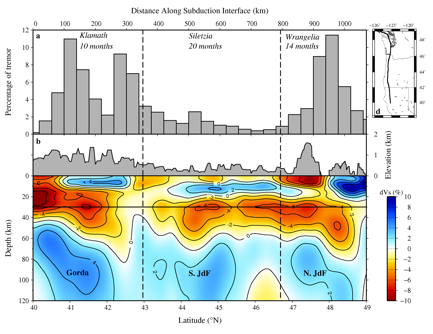

Figure below, Porritt et al. (2011) , is a comparison of PNW10-S with characteristics of ETS.
Model Areal Coverage
