Earth Model Help

The page displays information for individual Earth Models.

The model information is summarized at the top including links to further information.
Parametric Earth Models (PEM) (Inactive) icon
Model Summary
Name:  PEM
Title:  Parametric Earth Models (PEM)
Type: 1D Reference
Sub Type:  full model
Author(s): A. M. Dziewonski, A. L. Hales & E. R. Lapwood
Reference(s): Dziewonski, A. M., A. L. Hales, and E. R. Lapwood. 1975. "Parametrically simple earth models consistent with geophysical data Phys." Earth Plan. Int. 10:12.
DOI: doi:10.17611/DP/9991828
Depth Coverage: 0.0 - 6371.0 km
Model Description Parametric Earth models (PEM) introduced by Dziewonski, Hales and Lapwood (1975) consists of three models (Average, Continental & Oceanic) for which the radial variations of density and velocity are represented by piecewise continuous analytical functions of radius. All three models are identical below a depth of 420 km.
EMC Page ds.iris.edu/ds/products/emc-pem
Model Data
DescriptionSizeModel
Average Parametric Earth Model (PEM-A) in comma separated value (CSV) file format [columns lef to right representing Radius (km), Depth (km), Density (g/cm3), Vp (km/s) and Vs (km/s)] 5.9 KB
Average Parametric Earth Model (PEM-A) in comma separated value (CSV) IDV file format 6.0 KB
Continental Parametric Earth Model (PEM-C) that reflects different properties of the continental upper mantle in comma separated value (CSV) file format [columns lef to right representing Radius (km), Depth (km), Density (g/cm3), Vp (km/s) and Vs (km/s)] 5.9 KB
Continental Parametric Earth Model (PEM-C) that reflects different properties of the continental upper mantle in comma separated value (CSV) IDV file format 6.0 KB
Oceanic Parametric Earth Model (PEM-O) that reflects different properties of the oceanic upper mantle in comma separated value (CSV) file format [columns lef to right representing Radius (km), Depth (km), Density (g/cm3), Vp (km/s) and Vs (km/s)] 5.9 KB
Oceanic Parametric Earth Model (PEM-O) that reflects different properties of the oceanic upper mantle in comma separated value (CSV) IDV file format 6.0 KB
Referenced By
TypeNameTitleReference
1D ReferenceMC35A 1D modified PEM-C S velocity model van der Lee and Nolet (1997)
1D ReferenceSTW105A 1D Reference Earth Model Kustowski, Ekstrom and Dziewonski (2008)

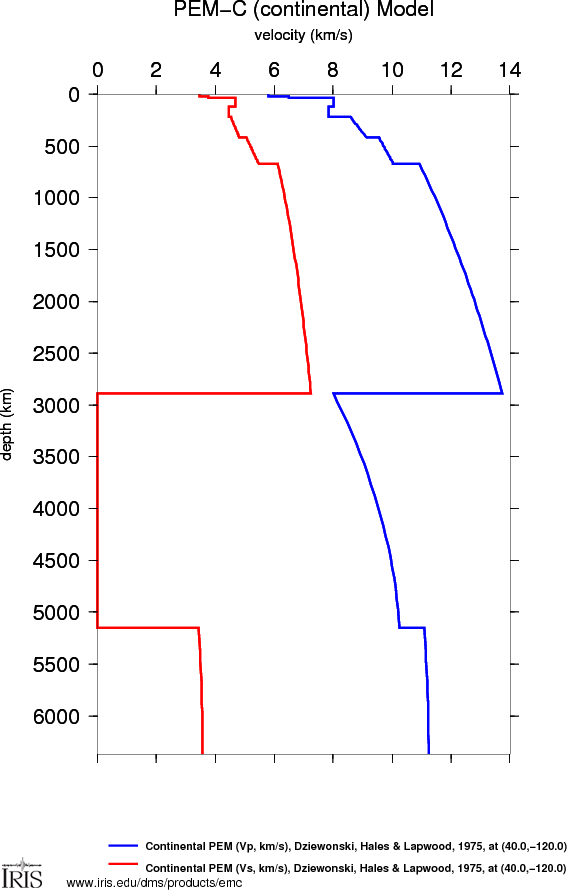

PEM-C Reference Earth Model
